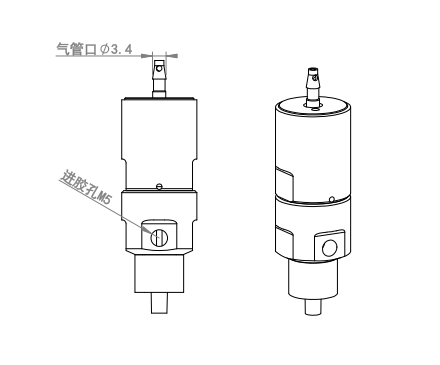

Grease Metering Valve
High-density processing, oil leakage prevention
Exquisite workmanship, long service life
Integrated casting design
Easy to disassemble and assemble, convenient for troubleshooting
| Item | Specification |
|---|---|
| Name | Alcohol Valve |
| Grease Dispensing Range | 0.1-2.0 cm³ |
| Metering Accuracy | ±1% |
| Inlet / Outlet Port | G1/4 BSPP |
| Pressure Rating | < 200 bar |
| Working Pressure | 20-200 bar |
| Air Supply Pressure | 3-8 bar |
| Air Supply Interface | Ø4 (M3) |
| Applicable Media | Grease; Silicone Grease, Silicone Oil; Damping Grease; Pressure Sensitive Adhesive |
| Ambient Temperature | -10 ~ +40 °C |




Grease Metering Valve
High-density processing, oil leakage prevention
Exquisite workmanship, long service life
Integrated casting design
Easy to disassemble and assemble, convenient for troubleshooting
| Item | Specification |
|---|---|
| Name | Alcohol Valve |
| Grease Dispensing Range | 0.1-2.0 cm³ |
| Metering Accuracy | ±1% |
| Inlet / Outlet Port | G1/4 BSPP |
| Pressure Rating | < 200 bar |
| Working Pressure | 20-200 bar |
| Air Supply Pressure | 3-8 bar |
| Air Supply Interface | Ø4 (M3) |
| Applicable Media | Grease; Silicone Grease, Silicone Oil; Damping Grease; Pressure Sensitive Adhesive |
| Ambient Temperature | -10 ~ +40 °C |
